BioPhoton Max

BioPhoton Max

€2.399,00 EUR
€2.399,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The BioPhoton Max is the full-body panel in the Dragonfly Red Light BioPhoton range. Its 66 × 36 cm light surface carries four times the LEDs of the BioPhoton+, so one session covers large areas of the body.

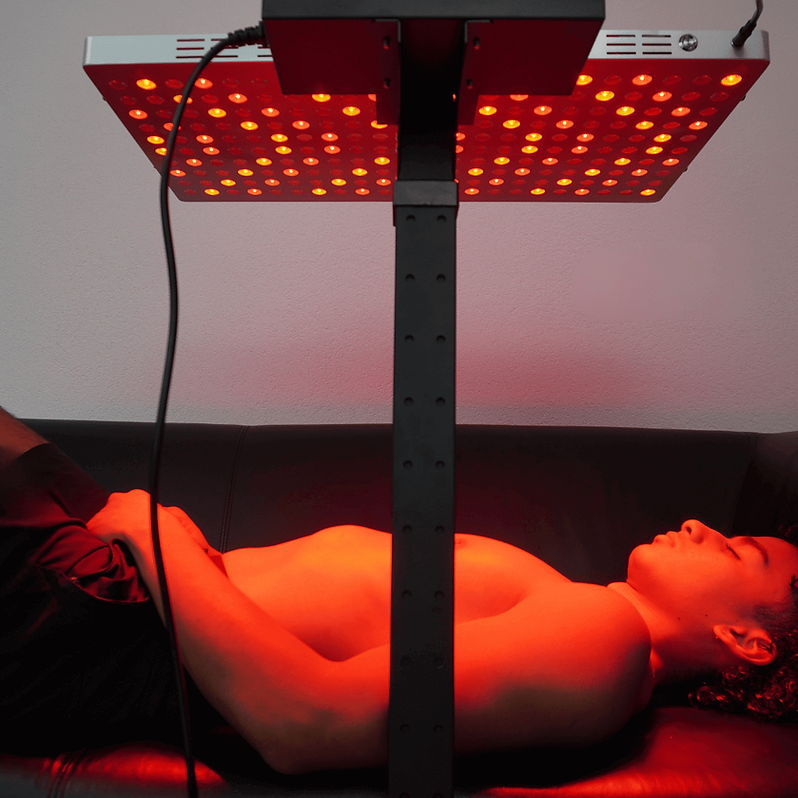

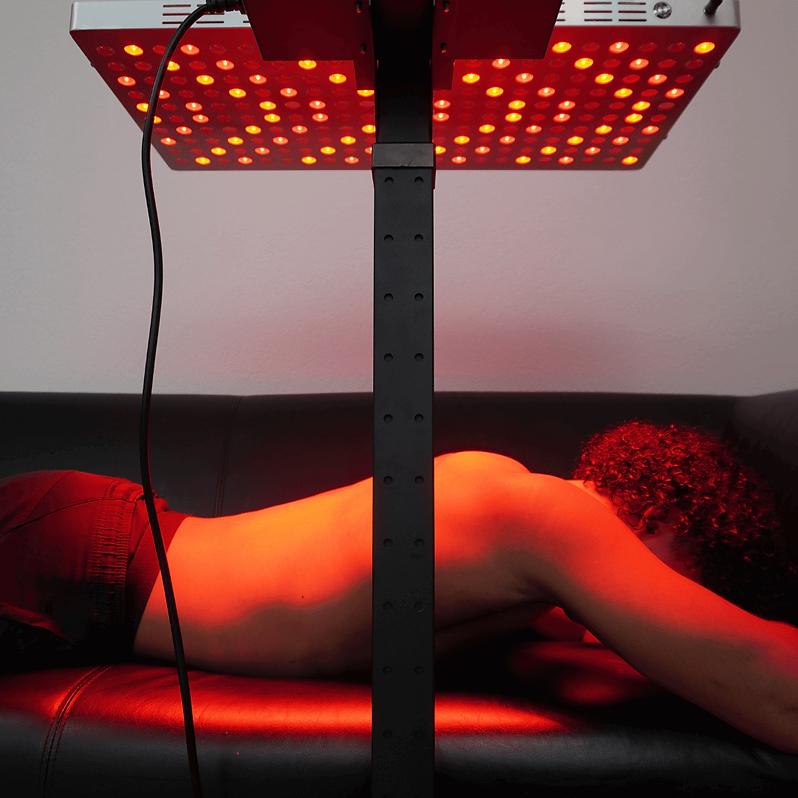

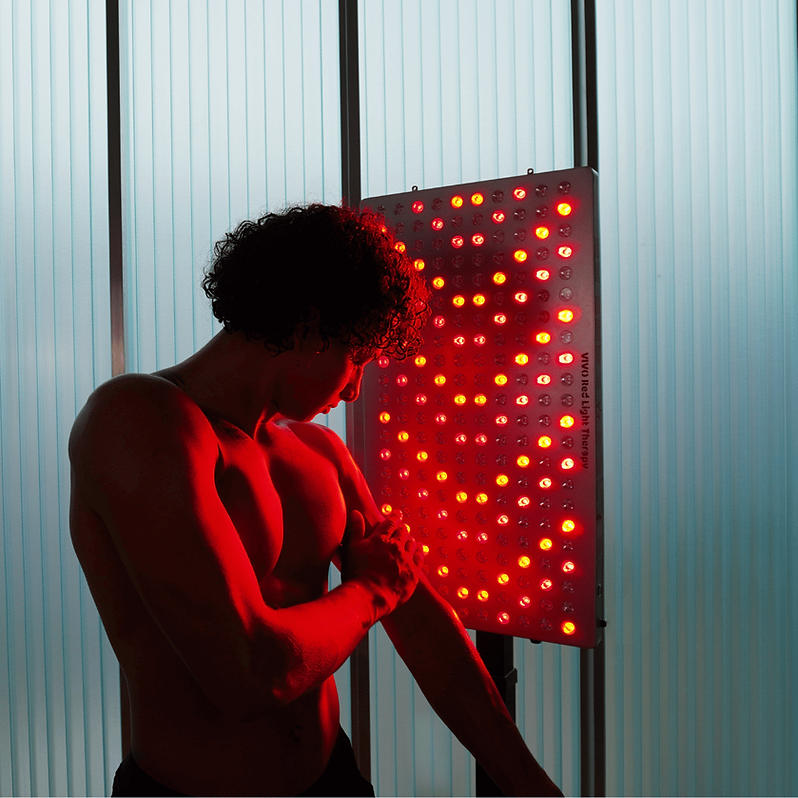

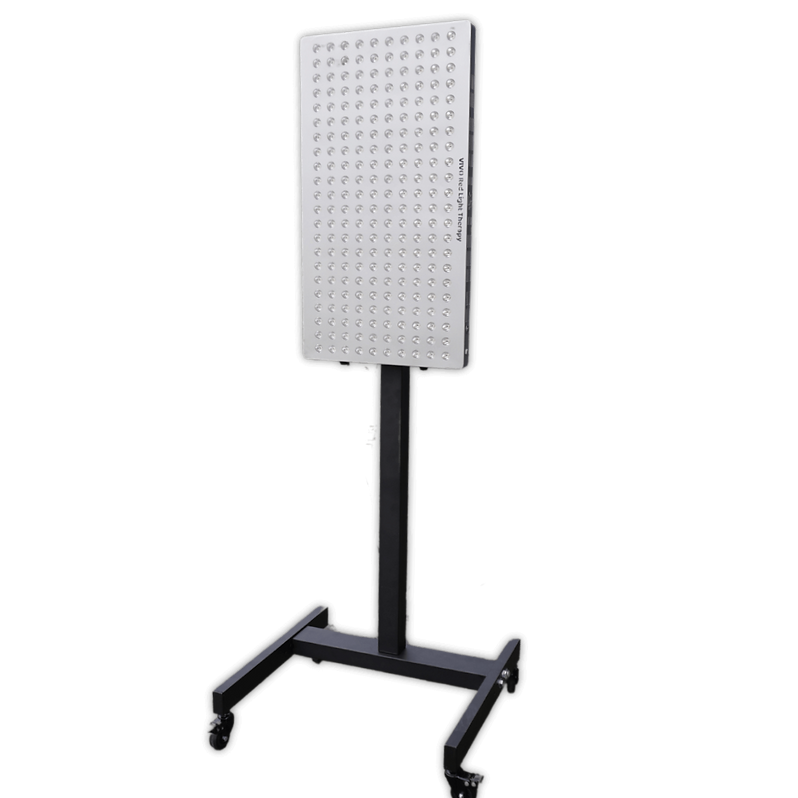

The included stand holds the panel vertically or horizontally, so you can sit, stand or lie down comfortably and keep your hands free.

What it is

  • 66 × 36 cm light surface with 220 LEDs, four times the LEDs of the BioPhoton+

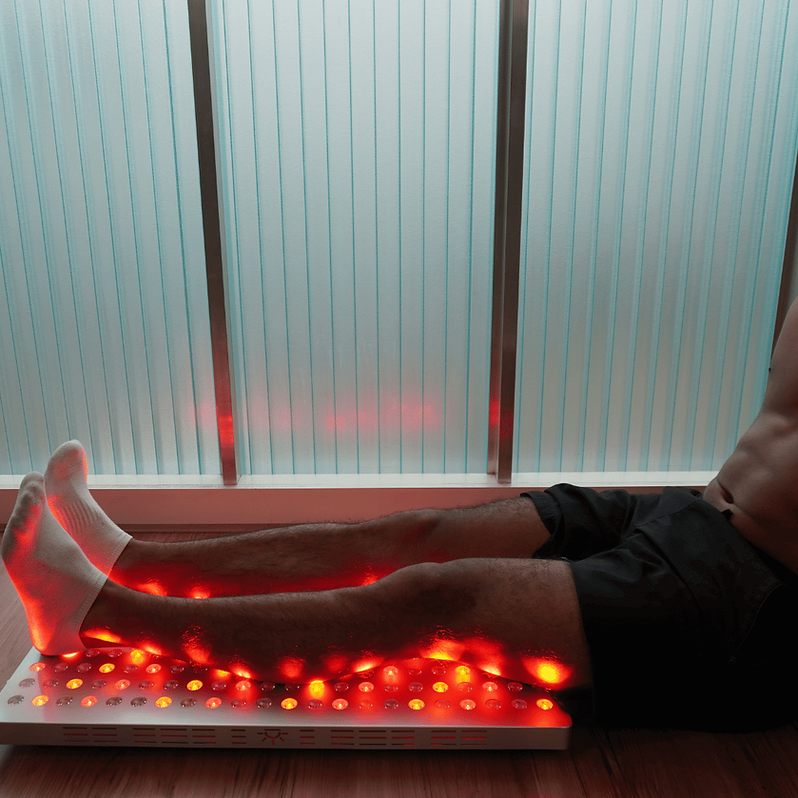

  • For skin contact or use at a distance
  • Stand for vertical or horizontal positioning, plus a vertical door mounting system
  • Mean Well power adapter

Using it

  • Plug and play: plug the BioPhoton Max into a grounded wall outlet and switch it on with the ON/OFF button on the device.
  • Power connection: 2 m grounded power cable, CE and KEMA marked.
  • Placement: on bare skin, or at a distance of 20 to 40 cm for full body use.
  • Sessions: 4 to 15 minutes. Many people like to use red light around sunrise and sunset.

Use at home or in a studio.

Laboratory research on red and near-infrared light focuses on its absorption by cytochrome c oxidase, an enzyme in the mitochondria. Most of that research uses 630 to 670 nm and 810 to 850 nm.

What's in the box

  • 1 × BioPhoton Max panel
  • 1 × Stand for vertical or horizontal positioning
  • 1 × Grounded CE power cable (2 m)
  • 1 × Mean Well adapter with DC cable
  • 1 × Protective eyewear
  • 1 × Vertical door mounting system
  • 1 × Premium user manual

Warranty and compliance

  • 3-year manufacturer's warranty
  • 60-day money-back guarantee
  • CE-marked, complies with RoHS and FCC standards

For more on living with red light at home, read the Dragonfly Red Light guide.

Talk to Dragonfly on WhatsApp +31 6 20037980

Frequently Asked Questions

Key Features

Stable Light Intensity
Between 15 and 40 cm the LED lens keeps the measured light intensity at 14 to 15 mW/cm², for comfortable full-body sessions for every body type.

Wide Body Coverage
A 36 cm wide panel, covering the full width of the body.

Measured EMF and Ultra-Low Flicker
Electric field 7 V/m and magnetic field 0.1 mG at 0 cm, with a flicker index of 0.0012%.

Five Wavelengths
A combination of 630 nm, 660 nm, 810 nm, 830 nm and 850 nm. Laboratory research on red and near-infrared light focuses on its absorption by cytochrome c oxidase, an enzyme in the mitochondria. Most of that research uses 630 to 670 nm and 810 to 850 nm.

Durable and Modern Design
Solid metal housing with a sleek profile. The included stand allows vertical and horizontal positioning, and the adapter fits inside the metal enclosure at the back of the stand.

Plug and Play, Completely Silent
Fanless full-body panel with an external Mean Well adapter. Connect the cable, press the power button and start. Sessions of 4 to 15 minutes, at home or in a studio.

Product Specifications

Number of LEDs: 220 × 3 watt dual-chip LEDs

Total LED output: 660 watts

Actual power consumption: 130 watts ±2 watts

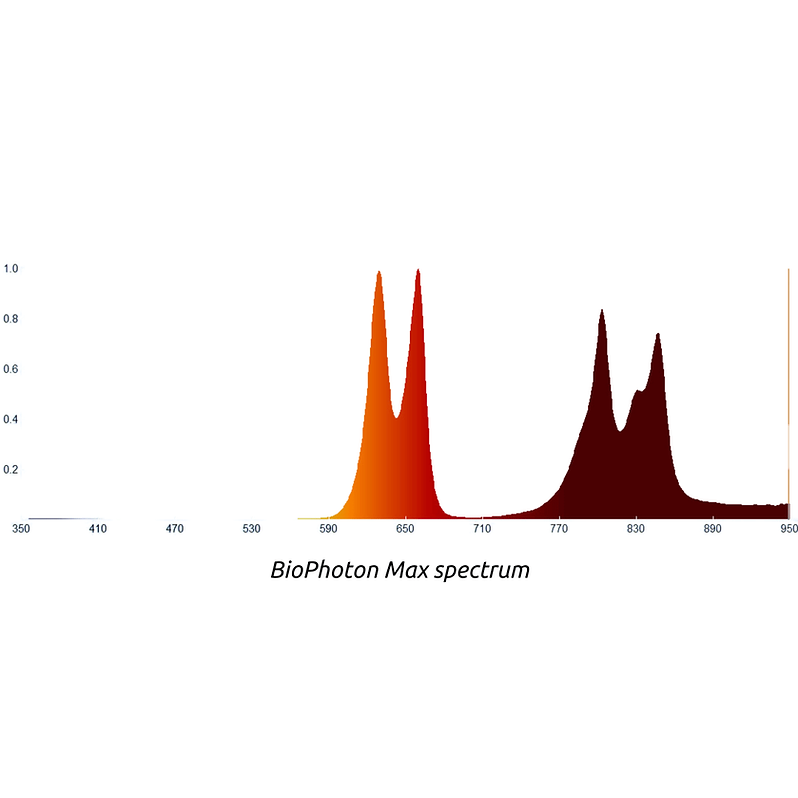

Wavelengths:

  • 44 × 630 nm LEDs
  • 44 × 660 nm LEDs
  • 44 × 810 nm LEDs
  • 44 × 830 nm LEDs
  • 44 × 850 nm LEDs

Light output (professionally measured):

  • 77 mW/cm² at 0 cm
  • 15 mW/cm² at 15 cm
  • 15 mW/cm² at 30 cm
  • 14 mW/cm² at 40 cm

Light output (solar power meter):

  • 148 mW/cm² at 0 cm
  • 26 mW/cm² at 15 cm
  • 25 mW/cm² at 30 cm
  • 24 mW/cm² at 40 cm

Weight:
7 kg

Dimensions:
66 × 36 × 3 cm

LED lens beam angle:
30 degrees

EMF at 0 cm (grounded outlet):

  • Electric field: 7 V/m at 0 cm
  • Magnetic field: 0.1 mG at 0 cm

Flicker index: 0.0012%

Power adapter:
DC 24V 6A, Mean Well adapter

Frequency:
50/60 Hz

Material:
Metal housing with VESA mounting on the back

Warranty:
3-year manufacturer’s warranty

Stand (base dimensions):
Depth: >50 cm
Width: >52 cm
Height: >13 cm (including wheels)

Notes:

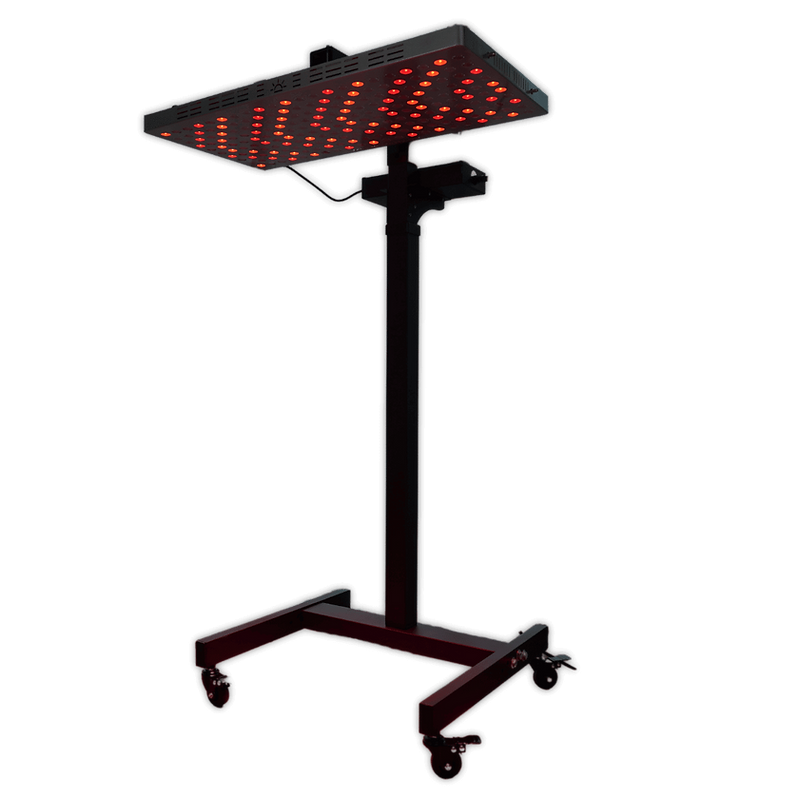

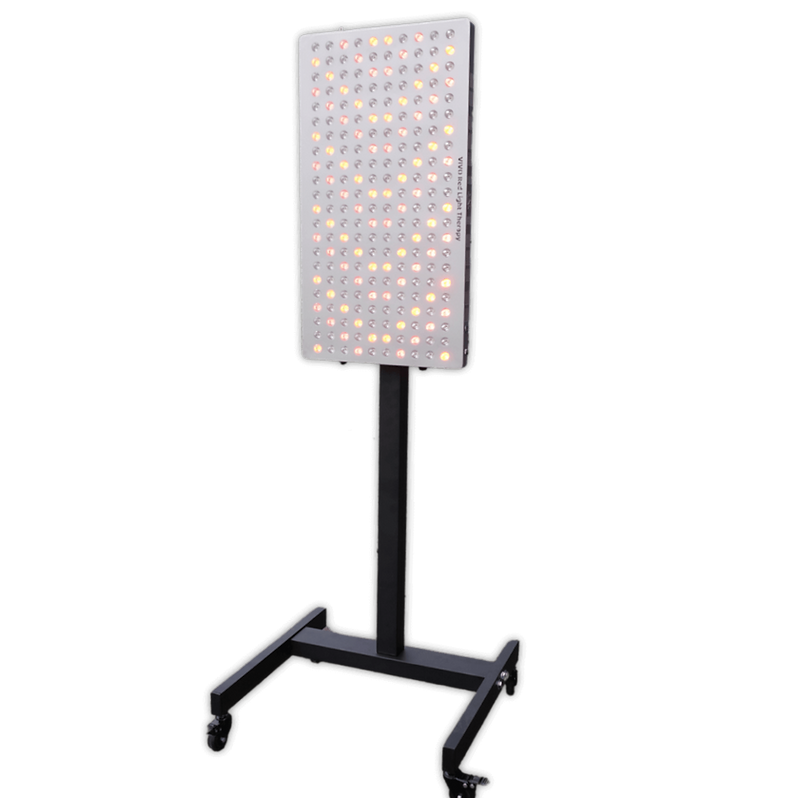

Includes stand for both vertical and horizontal positioning.

The adapter fits inside the metal enclosure at the back of the stand.
