RAY

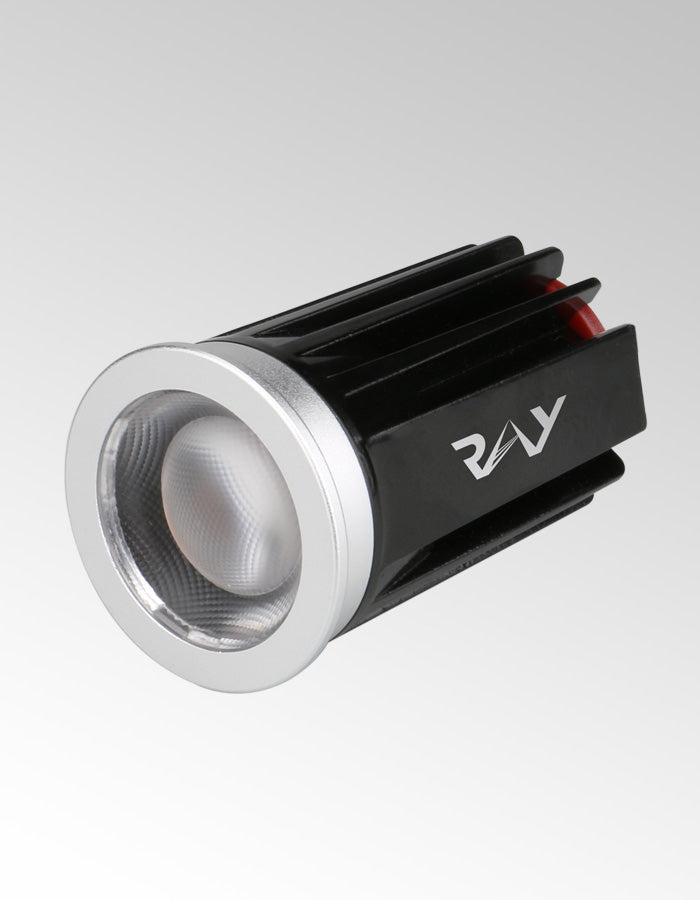

RAY ENGINE MINI DYNAMIC

RAY ENGINE MINI DYNAMIC

Regular price €65,95 EUR
Regular price Sale price €65,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beam Angle
Colour temperature
Quantity

A compact LED light engine for RAY's Mini housings, with 18° or 30° beams for accent and niche lighting. CRI 95+ in 2700K or 3000K. Wired to a RAY driver by an electrician, as part of a new or renovated ceiling.

Lamp type
Light Engine
Base
Engine module (driver fed)
CRI
95+
Dimmable
Yes, with RAY driver
CCT
2700K / 3000K
Watts
6 W
Lumens
236 to 376 lm
drive
DC37V / 120 mA
height
55 mm
life
40,000 h
warranty
3 years (RAY)
  • Circadian friendly
  • No blue spike
  • Fully dimmable
  • Gallery-level CRI

LED light engines in several sizes and outputs.

  • Beam 18°, 30°
  • Colour temperature 2700K, 3000K
View full details

RAY

Why RAY

The same four things, in every RAY light.

  • No blue spikeBlueBalance light source with full spectrum phosphor.
  • Flicker freeFlicker Free Bridging Technology smooths the current, so the light holds steady. Test it yourself with your phone camera in slow motion.
  • True colourReds, skin and wood look like themselves. Sunlight is 100.CRI 95+
  • Circadian friendly, fully dimmableWarm light for the evening, down to a glow.
Spectrum of an ordinary LED with a tall blue peak, beside the smooth full spectrum of RAY light
Ordinary LED (left) against RAY (right). Chart supplied by RAY.

Specification

The detail, plainly

Light
Light output
236 to 376 lm
CRI
95+
Colour temperature
2700K / 3000K
Beam angle
18° / 30°
Electrical
Power
6 W
Dimmable
Yes, with RAY driver
Fitting and size
Fitting
Engine module (driver fed)
Life and warranty
Lifetime
40,000 hours (about 36 years at 3 hours a day)
Warranty
3 years (RAY)
